Trailer door repair gets rear ramp doors, barn doors and side doors opening safely, closing square and locking tight. That covers ramp door springs and cables, worn hinges, latches that won’t catch, cam bar locks and sagging doors. Keep Them Rolling Trailer Repair fixes doors where the trailer is parked, from Randolph out through Morris, Sussex, Warren and Hunterdon counties. Owner Brad Smith books door repairs at (973) 651-1045.
Ramp door springs and cables
A rear ramp door is a big, heavy panel. It only feels manageable because a spring assist carries much of its weight. On most enclosed trailers, springs mounted near the lower hinge or along the rear corner posts connect to the upper part of the door with cables. As the door comes down, the springs stretch or wind up and store energy. When you lift it, they give that energy back.
When the system wears out, you feel it:
- The door is noticeably heavier than it used to be, or now takes two people
- It drops fast and slams onto the ground instead of lowering under control
- One side lifts before the other, twisting the door
- A cable is frayed, kinked, off its pulley or snapped
- A spring is rusted, stretched open or broken
Springs fatigue over thousands of cycles, and cables wear where they bend around pulleys. Road salt speeds up both. A spring stores a lot of force, so never try to unhook one that is still under tension.
Springs and cables are best replaced in pairs, even when only one side has failed, because the other side has done exactly the same work and is close behind. He checks the pulleys for grooved sheaves or seized bearings, then sets the tension so one person can lower and raise the door without it slamming down or springing back up. Car haulers and equipment trailers with heavier ramps get heavier springs and cables to match.
Hinges and latches
Ramp doors usually hang on a long piano hinge or a row of heavy hinges along the bottom edge. Barn doors and side doors hang on strap or butt hinges. Every hinge turns on a pin, and as that pin and its bushing or knuckle wear, the door drops a little. A small drop at the hinge becomes a big gap at the latch side, and the latch stops meeting its keeper.
Loose hinge bolts cause the same trouble and add a rattle you can hear from the cab. Cracked hinge plates or torn mounting points usually need welding, which falls under mobile welding and fabrication. Worn pins and bushings get replaced, bolts get tightened or upgraded, and moving parts get greased so the new hardware lasts.
Cam bar locks and sagging barn doors
Barn doors on cargo trailers usually lock with a cam bar: a vertical rod on each door with cams at the top and bottom that rotate into keepers on the rear frame when you swing the handle over. It is a strong lock, but it depends on the door sitting exactly where it was built to sit.
When a barn door sags, the bottom cam drags on its keeper or misses it entirely, and you end up lifting the door by hand to get the handle closed. Other cam bar problems include a bent rod, worn or broken rod guides, keepers knocked out of position, and handles rusted stiff. Brad restores the door’s hang at the hinges first, then realigns or replaces keepers and guides so the cams engage without force. A new cam bar on a door that still sags just wears out faster.
Side doors and roll-up doors
Side entry doors see more foot traffic than any other door on an enclosed trailer. Their flush or paddle locks wear, the door frame gets bent by a backing mistake or a forklift, and the hinge side pulls on a wall that flexes. Some trailers have roll-up rear doors instead, with tracks, springs and a curtain that can bend, break or jam. Both get the same approach: find what moved, put it back, then repair or replace the worn parts.

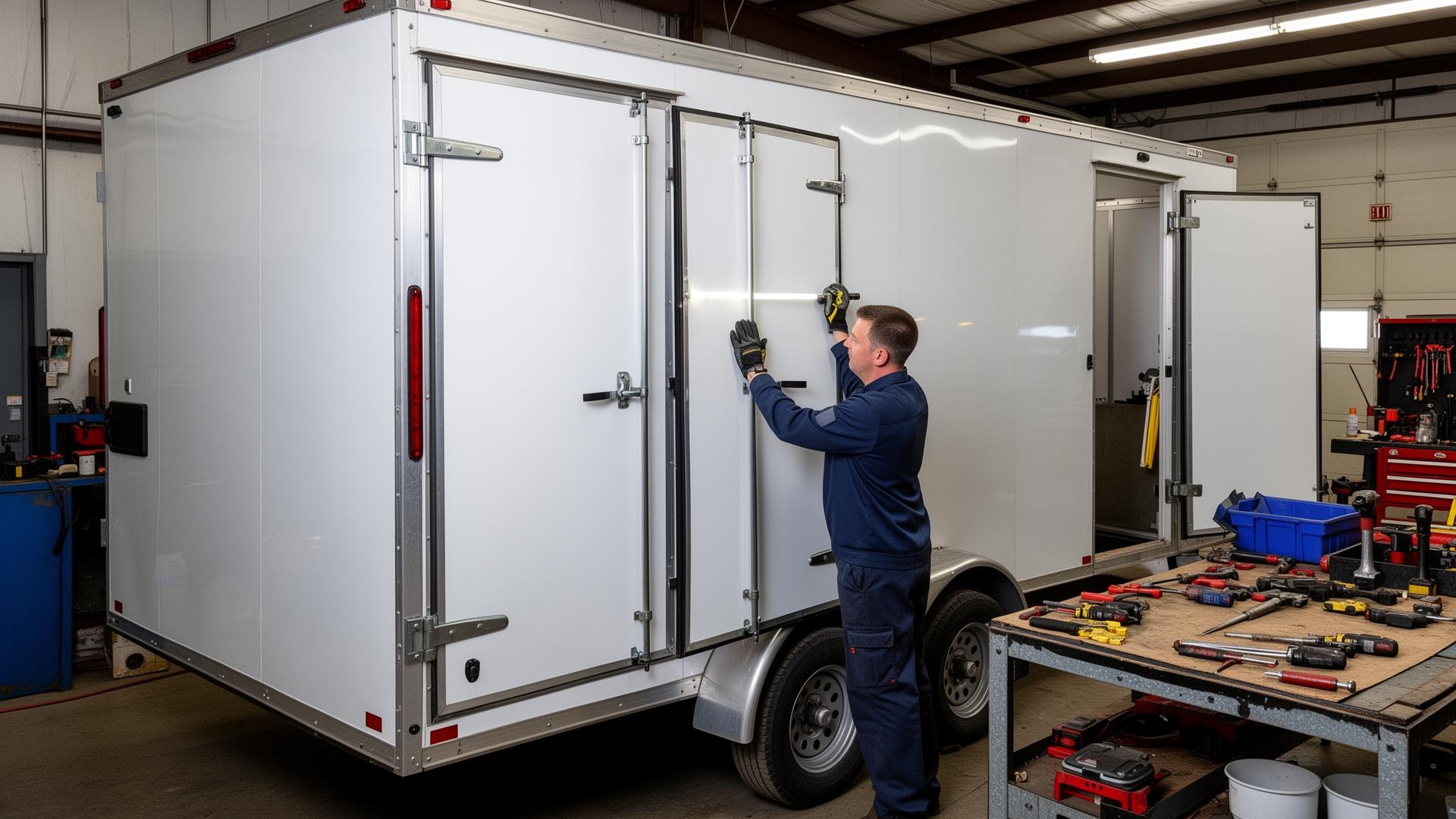

How Brad diagnoses a door that won’t close right
A door problem is often a frame problem in disguise. Brad checks the opening for square by comparing the diagonal measurements from corner to corner. He checks hinge play, looks for a bent rear header or corner post, and watches how the door meets its latch and seal as it closes. A door that fits correctly compresses its seal evenly all the way around. One that doesn’t lets water in, which is why door work and seal work often happen on the same visit.
A bent corner post or torn skin next to the door is covered under trailer panel and siding repair. Water that has already soaked the threshold may mean trailer floor repair as well.
What drives the cost
Door repairs are priced on what the trailer needs: which door, how many springs, cables or hinges, whether any welding is involved, and whether heavier ramp hardware is required. Brad looks the door over and quotes the job before a single spring or hinge comes off.
Fixed where the trailer sits
You shouldn’t have to tow a trailer with a door that won’t latch. Door work is part of our mobile trailer repair service, done in your driveway, yard or job site, including towns across Sussex County. It is one piece of our wider enclosed trailer repair work. When you’re ready, request trailer door service or call.
Common questions
Why is my trailer ramp door so heavy?
A ramp door gets heavy when its spring assist stops carrying the load. Springs lose tension over years of use, rust can seize them, and a broken spring or snapped cable leaves one side doing all the work. Look at both sides of the door for frayed cables, cables off their pulleys and stretched or broken springs. Replacing the springs and cables as a pair and resetting the tension usually brings the door back to a one-person lift.
How do you adjust a trailer door that won’t latch?
First find out why it moved. Most doors that won’t latch have dropped at the hinges from worn pins or loose bolts, so the latch side now sits lower than the keeper. Tightening or replacing the hinge hardware often lifts the door back into line. If the door hangs correctly but still misses, the keeper can be repositioned. If the frame or a corner post is bent, straightening it comes before any latch adjustment, or the problem returns.
Can ramp door springs be replaced on site?
Yes. Ramp door springs and cables can be replaced with the trailer parked in your driveway, yard or job site, so there is no need to tow it anywhere. The door is supported while the tension is released, the old springs, cables and any worn pulleys come off, and new parts rated for the door’s weight go on. The tension is then set and the door is cycled several times to confirm it lifts and lowers smoothly.
