Boat trailer repair covers the parts that take a beating every time you launch: wheel bearings and hubs, surge or electric-over-hydraulic brakes, axles, springs, lights, tires and the steel frame. Keep Them Rolling Trailer Repair does the work in your driveway, a storage lot or a marina lot around Morris, Sussex, Warren and Hunterdon counties. Book through owner Brad Smith at (973) 651-1045.
Why boat trailers wear out faster
A boat trailer gets backed down a ramp until the hubs are underwater, pulled out dripping, then towed home and parked, sometimes for weeks. That cycle wears out the bearings, the brakes and the steel. Locally, the water is fresh: Lake Hopatcong, the largest lake in New Jersey, sits on the Morris and Sussex county line, Budd Lake is in Mount Olive, and the Delaware River forms Warren County’s western border. Fresh water is kinder than salt, but every launch still puts water where grease and brake parts need to stay dry, and a trip to the shore makes it worse.
Any job on the full list of trailer repair services can come up on a boat trailer; these come up most.
Hubs and bearings: where most boat trailer breakdowns start
The drive to the ramp heats each hub, and the air inside it expands. Back it into cold water and that air contracts, which can draw water past the rear seal. Grease with water in it turns milky and stops protecting the rollers. The bearing pits, rusts and eventually overheats on the highway, and a failed bearing can take the spindle or the whole axle with it.
One boat owner learned this the hard way. A hub came apart as he towed home from a day of fishing, and by the time he reached his driveway little of it was left. Brad inspected the trailer right there, found the axle damaged as well, ordered a new one and had it installed within the week. His advice afterward: get the hubs checked every year.
For a boat trailer bearing replacement or repack, Brad pulls each hub, cleans out the old grease, and replaces any bearing, race or seal that’s pitted, scored or blued by heat. The rest is repacked with water-resistant grease and adjusted. Spring-loaded bearing protectors, which hold light pressure on the grease to help keep water out, can be fitted or topped up on the same visit. Wheel bearing service and repacking has the full process.

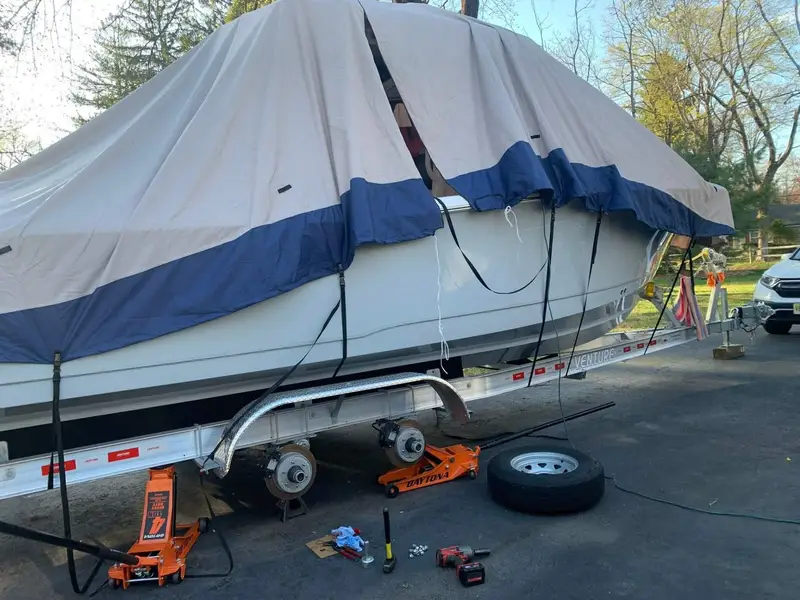

Boat trailer brake repair: surge, disc and electric-over-hydraulic
Most boat trailers with brakes use hydraulic surge brakes. When your truck slows, the trailer’s momentum pushes on a master cylinder built into the coupler, which sends pressure through steel lines to drums or disc calipers. No brake controller is involved. Larger boat trailers often use electric-over-hydraulic brakes instead: a pump on the trailer, run by the brake controller in your truck, pressurizes the same kind of system. Electric drum brakes, common on utility and camper trailers, generally don’t survive repeated dunking.
Brad’s boat trailer brake repair covers:
- Seized calipers, wheel cylinders and slide pins
- Rusted drums, rotors, pads and shoes
- Corroded brake lines and old fluid that has absorbed water
- The surge actuator’s master cylinder and damper
- The reverse lockout, often a solenoid on the reverse-light circuit, that keeps surge brakes off as you back down the ramp
- Electric-over-hydraulic actuators and their wiring
More on symptoms: trailer brake repair and replacement.
Rust, axles and frames
Painted frames rust first where the paint is chipped and where water sits on the crossmembers. Galvanized frames hold up longer but still rust at cut ends, drilled holes and scrapes. Brad checks everything that carries load: the tongue, main rails, crossmembers, spring hangers and axle. Steel that has lost real thickness gets cut out and new steel welded in.
Many boat trailers ride on torsion axles, which use rubber cords inside the tube instead of leaf springs. When the rubber wears out, the trailer sags and rides harsh. Leaf-spring trailers rust at the spring eyes, shackles and U-bolts. A replacement axle usually has to be ordered to the right width, spring mounting and capacity, so plan on a second visit to install it. See axle repair and axle replacement.
Submersible lights and wiring
Incandescent bulbs are the weak point: dunk one while it’s still hot and the glass may crack, and any water that seeps into a housing eats the socket. Sealed, submersible-rated LED lights are the usual upgrade. If yours still has bulbs, unplug the trailer before backing down the ramp so they can cool. Often the real fault is the wiring, since splices at the rear, the ground to the frame and the plug at the tongue all corrode. Brad traces it, replaces corroded runs and seals the connections. See trailer light repair and LED upgrades.
A spring checklist before the first launch
- Hubs and bearings inspected and repacked
- Brakes checked for seized parts, leaks and wear
- Lights and plug tested on the truck
- Tires checked for cracks, pressure and age (the four-digit sidewall date code); lug nuts torqued
- Coupler latch, safety chains, jack and frame looked over
Brad does this wherever the trailer spent the winter, so there’s no towing it to a shop on doubtful bearings. It’s the same mobile trailer repair service he runs from Randolph, including the lake towns of Sussex County. To book a check, request boat trailer service or call.
Common questions
How much does it cost to service a boat trailer?
It depends on what Brad finds once the hubs are open. The main factors are the number of axles, the brake type (surge drum, surge disc or electric-over-hydraulic), whether the bearings and races can be reused, how much rust has frozen the hardware, and how far he has to travel. Parts that must be ordered, such as an axle, add time. Brad walks you through an honest price before a wrench turns.
How often should boat trailer bearings be serviced?
At least once a year, ideally before the first launch of the season. A common manufacturer guideline is an inspection every 12 months or about 12,000 miles, but submerged hubs often need attention sooner than the miles suggest. After a drive, carefully feel each hub. One that’s much hotter than the others, a grinding noise, or a wheel with play all mean service before the next trip.
How do you repair a rusty boat trailer?
First, find out how deep the rust goes. Surface rust can be wire-brushed, treated and painted. Scale that flakes off in layers means the steel is thinning, and a member that has rusted through has to be cut out and replaced with welded-in steel. Rusted springs, U-bolts, brake lines and axles are normally replaced rather than repaired. Brad looks over the tongue, rails, crossmembers and hangers before quoting.
Why do boat trailer brakes seize?
Water is almost always the cause. After a launch, water sits in the drums and calipers and rusts the pistons, slide pins and shoe hardware, while brake fluid slowly absorbs moisture and corrodes the system from inside. Trailers that sit for weeks between launches, or all winter, seize most often. Rinsing the brakes with fresh water after each trip and a yearly inspection both help. Once a caliper or wheel cylinder has frozen, replacing it is usually the fix.
