Trailer axle repair fixes the parts bolted to or welded onto an axle; trailer axle replacement swaps the whole axle when the beam is bent or a spindle is ruined. Keep Them Rolling Trailer Repair handles both on single and tandem axle trailers at your home, business or job site. Owner Brad Smith drives out from Randolph, NJ, to jobs in Sussex, Warren, Hunterdon and Morris counties. Phone (973) 651-1045.
How a trailer axle is built
A leaf-spring axle is a steel tube, round or square, with a spindle welded to each end and spring seats welded along the top or bottom where the springs clamp on. Axles with brakes also have a brake flange welded behind each spindle. A drop axle has its spindles set above the beam’s centerline to lower the deck. A torsion axle is a different design: a square tube with rubber cords inside and a short arm at each end, bolted to the frame by brackets, so the axle is also the suspension.
Trailer axles are not built perfectly straight. Most have a slight upward arch, called camber, so that at their rated load the beam flattens and the wheels stand upright. Overload an axle often enough and that arch goes away for good, or bends the other way.
Signs of a bent axle or a damaged spindle
- Tires on one axle wearing on the inside or outside edges, or feathered across the tread.
- A trailer that tracks off to one side instead of following the truck.
- A wheel that leans in at the top when the trailer is loaded.
- Bearings that keep failing on the same wheel, or a seal that will not stay put on one side.
- Blue or black heat marks on a spindle once the hub is off.
- A wheel that sits differently after a hard hit on a curb, pothole or ditch.
A few of these have other causes. A broken spring center bolt or a worn hanger can let the axle shift and mimic a bent beam, so Brad checks the springs and hangers before condemning an axle. That side of the work is on the trailer suspension repair page.
What bends axles and burns spindles
- Overloading. Carrying more than the axle’s rating flattens the camber and can bend the tube.
- Impacts. Curbs, deep potholes and dropping a wheel off a driveway edge can bend a spindle or the beam.

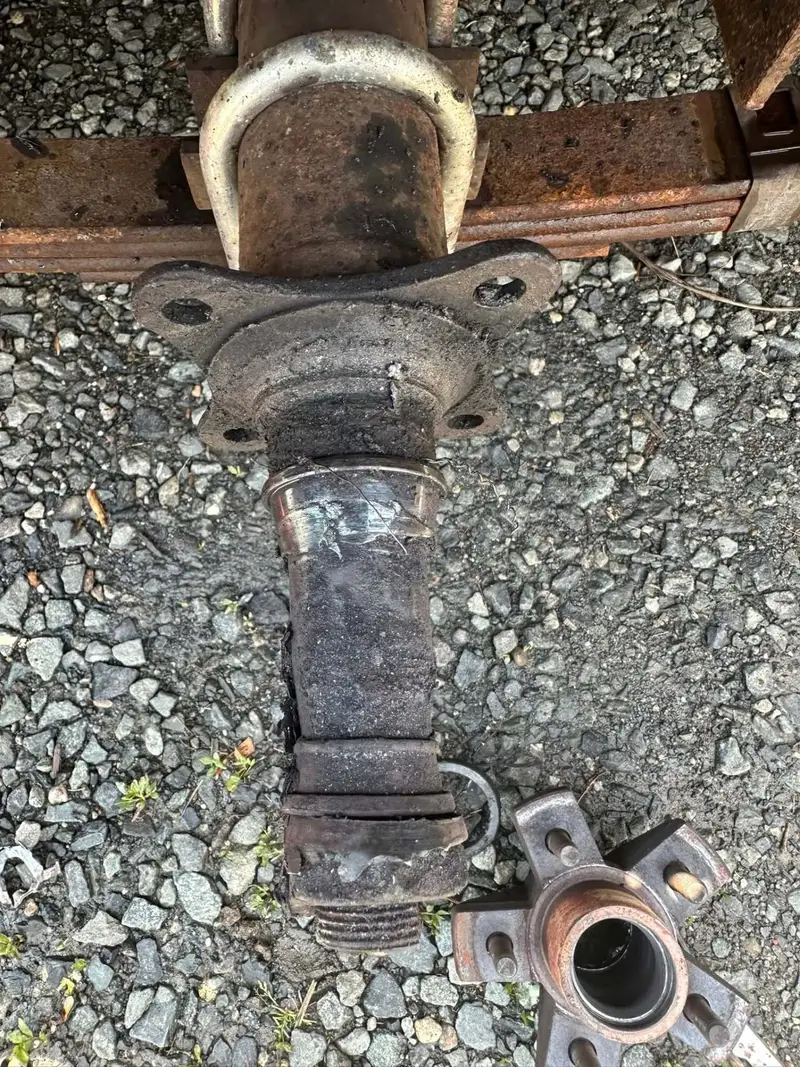

- Bearing failure. A bearing that runs dry overheats the spindle. A “burnt” spindle is one where that heat has discolored the steel, and often the bearing has seized to it or spun its inner race and worn the seat undersize.
- A spindle nut set wrong. Too tight preloads the bearings and builds heat; too loose lets the hub wobble and hammer the seats.
- Rust. Spring seats and spindle welds on trailers that live in salt or lake water can corrode until they crack.
Trailer axle repair or replacement
Plenty of axle problems do not need a new axle. Hubs, drums, bearings, seals, spindle nuts, U-bolts and tie plates are all replaceable, and an axle that has slid on its springs can be re-centered and clamped down. What cannot be fixed reliably is a bent beam, a cracked tube, or a spindle whose bearing seats are scored or heat damaged. For those, a new axle is the honest answer. A torsion axle whose rubber has worn out is replaced as a unit too.
How Brad matches and installs a replacement axle
Ordering the right axle takes measurements, not guesses. Brad records the capacity rating, the hub-face-to-hub-face width, the spring-center-to-spring-center spacing, whether the axle sits over or under the springs, the brake size or lack of brakes, the wheel bolt pattern and the bearing size. For a torsion axle he adds the bracket spacing and the arm angle.

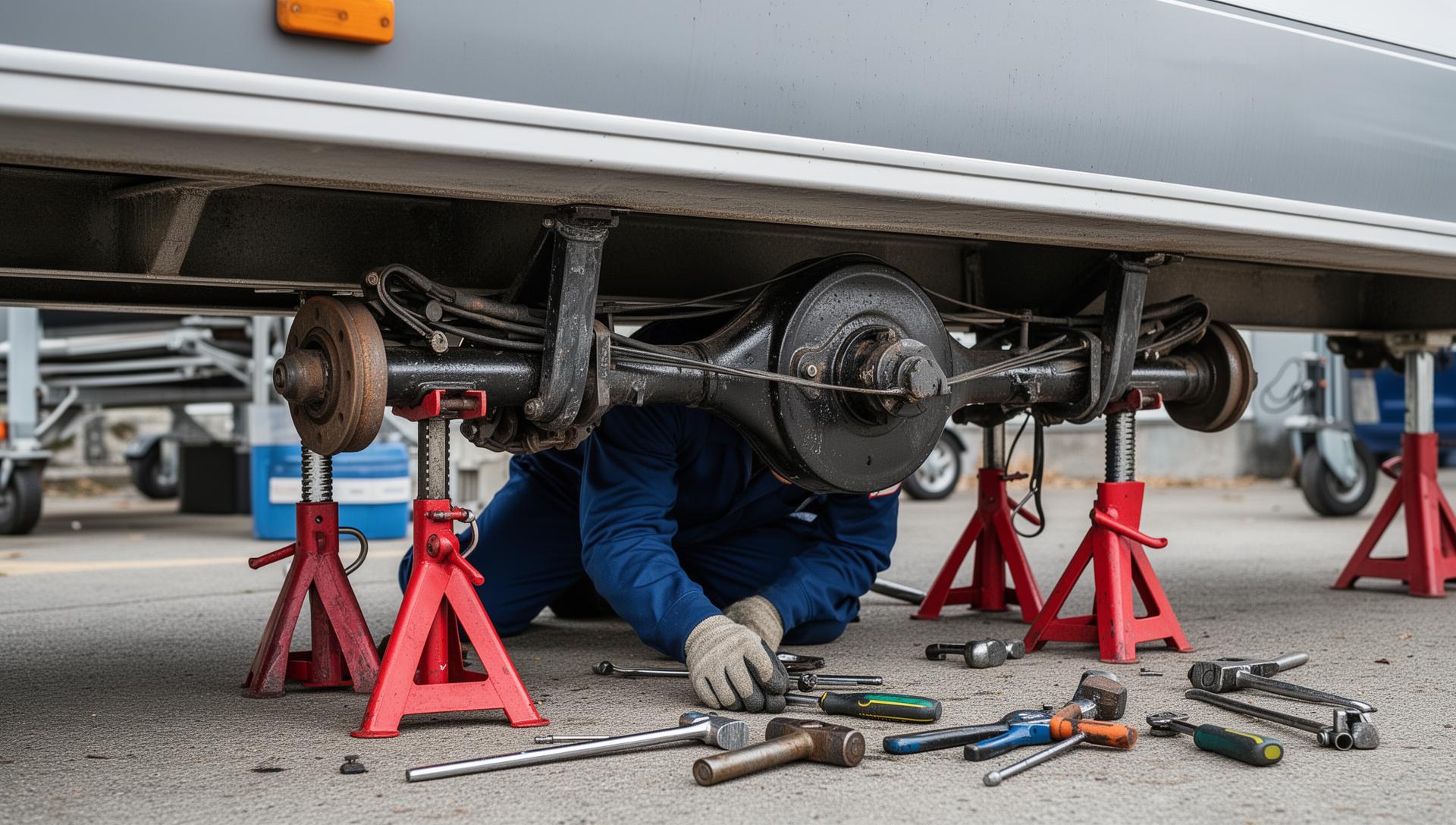

When the new axle arrives, he supports the frame, removes the wheels, U-bolts and old axle, sets the new one in place, and clamps it with new U-bolts tightened evenly to spec. Brake wiring is reconnected and sealed, the hubs and bearings are checked and greased, and the axle is measured square to the coupler, and to the other axle on a tandem, before the wheels go back on. Because an axle usually has to be ordered, this tends to be a two-visit job: one visit to diagnose and measure, a second to install.
That is how it went for a boat owner whose hub came apart on the way home from a day of fishing. The trailer made it to his driveway, but the axle was damaged. Brad came out, walked him through what had failed, ordered the axle and had the trailer finished within a week.
Protecting the new axle
Bearing trouble is behind most spindle damage, so wheel bearing service and repacking once a year is the simplest way to keep a new axle healthy. A bent axle also wears tires unevenly, and trailer tire repair and replacement takes care of the ones it has already scrubbed. Keep loads under the axle rating, and slow down for the potholes that show up after every New Jersey winter.
Axle work falls under trailer brake, axle and suspension repair. Brad diagnoses and installs axles in driveways and yards from Randolph out to Warren County; the page on roadside and on-site trailer service describes how a visit goes. Request an axle inspection or call.
Common questions
How do I know if my trailer axle is bent?
Tire wear is the first clue: tread worn on the inside or outside edges of the tires on one axle, or feathered across the face. You may also see the trailer track to one side behind the truck, or a wheel that leans at the top when loaded. Measuring from the coupler to each end of the axle, and between axles on a tandem, shows whether it sits square. A bent beam is confirmed with a tape, not by eye.
Can a trailer axle be repaired or does it need replacing?
It depends on what is damaged. Hubs, bearings, seals, brakes, U-bolts and an axle that has shifted on its springs can be repaired or reset, and the axle stays. A bent beam, a cracked tube, or a spindle whose bearing seats are scored or heat-damaged usually means a new axle, because a bearing cannot run safely on a damaged seat. Brad shows you which case you are in before he quotes.
What causes a trailer spindle to fail?
Most spindle failures start at the bearings. A bearing that runs out of grease or takes on water overheats, and that heat can discolor the spindle, seize the bearing to it, or wear the seats out of round. A spindle nut set too tight or too loose, a missing cotter pin, the wrong bearing size and hard impacts all do damage too. Yearly bearing service catches most of it early.
