Trailer suspension repair replaces the worn parts that hold your axles under the frame: leaf springs, shackles, equalizers, spring hangers, bushings and bolts, plus checks on torsion axles. It is for any trailer that sags, clunks or chews through tires. Keep Them Rolling Trailer Repair brings parts and tools to trailers in its four New Jersey counties: Morris, Sussex, Warren and Hunterdon. Reach Brad Smith at (973) 651-1045.
How a leaf spring suspension works

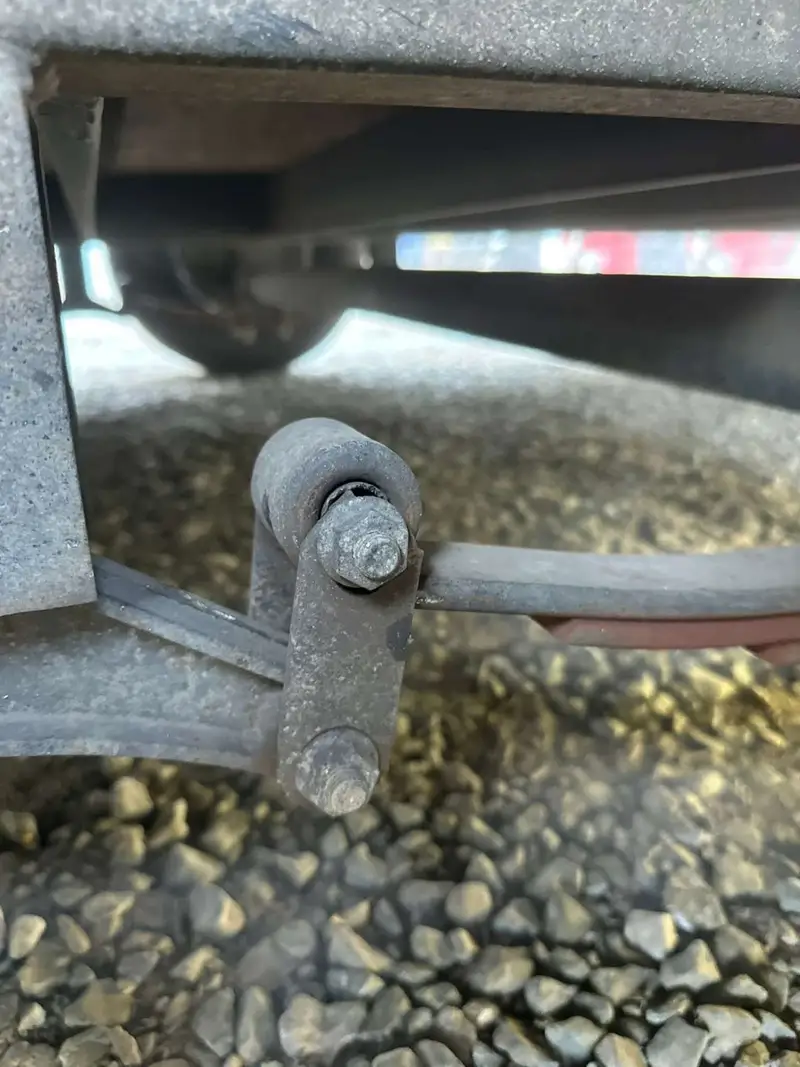

A leaf spring is a stack of curved steel leaves held together by a center bolt and clamped to the axle with U-bolts and a tie plate. Most light and mid-size trailers use double-eye springs, which have a rolled eye at each end. The front eye bolts to a fixed hanger welded to the frame. The rear eye connects through a pair of shackle links, which swing so the spring can lengthen as it flattens under load. Some heavier trailers use slipper springs instead, with one end resting on a hanger and sliding as the spring flexes.
On a tandem, the rear of the front spring and the front of the rear spring both hang from an equalizer, a rocker that pivots on the center hanger. Every pivot point has a bolt and a bushing, usually nylon from the factory. Nylon wears quickly under heavy use, which is why bronze bushings and greaseable “wet” bolts are a common upgrade.
Torsion axles skip the springs entirely. Rubber cords packed inside the axle tube resist the arms as they swing, and the whole assembly bolts to the frame.
Signs of worn trailer suspension
- The trailer leans or sits lower at one corner, even empty.
- A tire rubs the fender under load, or the fender gap differs side to side.
- Clunks or squeaks over bumps, or a bang when you pull away and stop.
- On a tandem, one axle’s tires wearing faster than the other’s.
- Springs that look flat instead of arched, cracked leaves, or leaves fanned out sideways, a sign the center bolt has broken.
- Oval, stretched holes at the shackles, chewed-out bushings, or bright metal-on-metal wear at the spring eyes.
- Hangers rusted thin, cracked at the weld or bent backward.
- On torsion axles, arms that point down farther on one side, a trailer sitting low, or a harsh, bouncing ride.

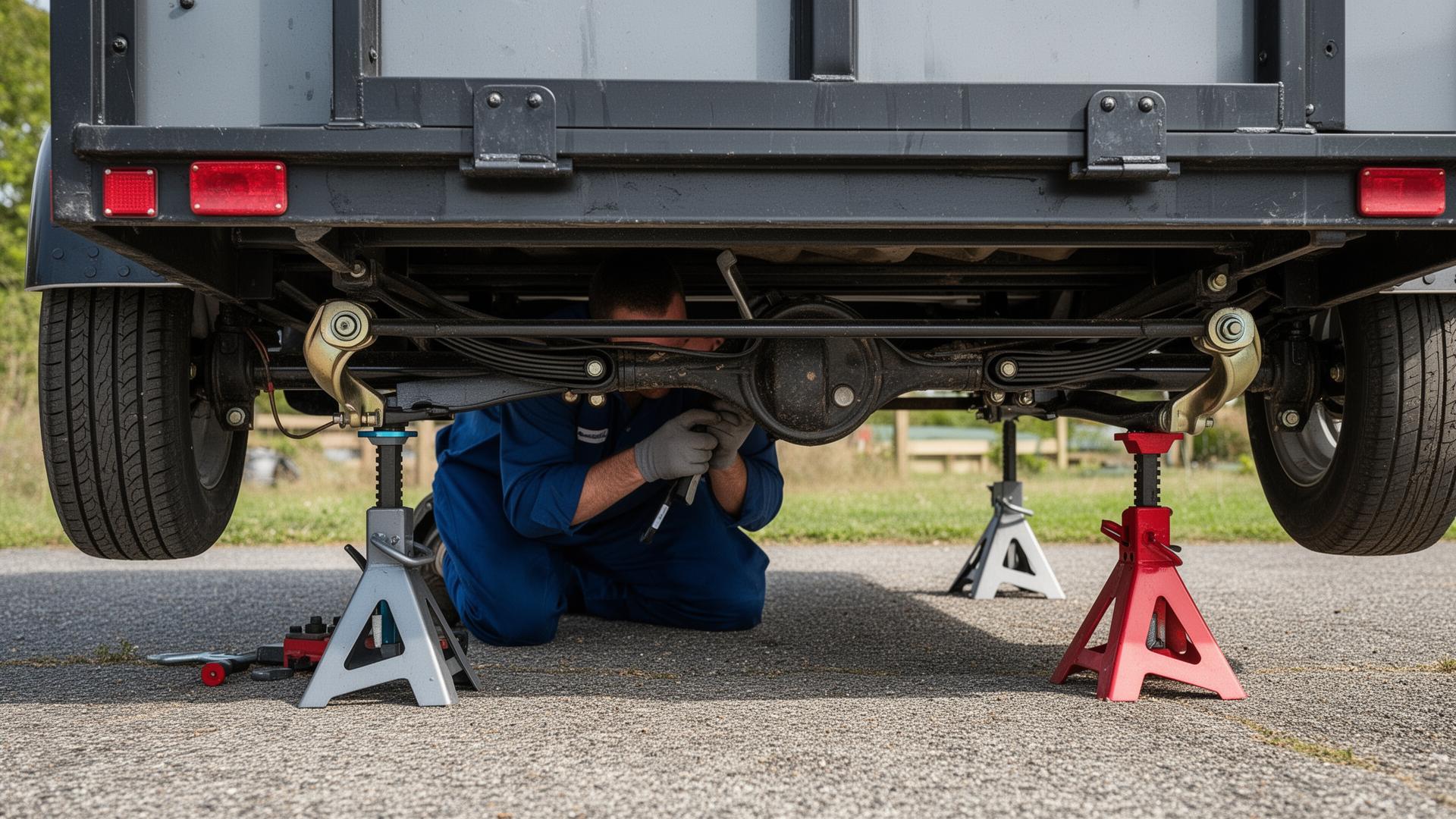

What Brad inspects and replaces
With the trailer on stands and the weight off the springs, Brad checks every eye, bolt, bushing, shackle, equalizer and hanger, plus the U-bolts and tie plates.
- Leaf springs are replaced in pairs across an axle, and usually all four on a tandem, so the trailer sits level. New springs are matched to capacity, eye-to-eye length and style.
- Shackles, bolts and bushings are replaced as a set. On trailers that work hard, bronze bushings and wet bolts that take grease are worth asking Brad about.
- Equalizers get replaced when the pivot hole has worn oval or the body has cracked.
- Spring hangers rusted thin where they meet the frame are a common find on trailers that see salted roads. The old hanger is cut off and a new one welded on square to the frame. If the rail around it has rotted, the job moves into trailer frame repair.
- U-bolts and tie plates are replaced whenever springs are, since U-bolts stretch when tightened and should not be reused.
- Torsion axles with worn-out rubber cannot be rebuilt on the trailer. They are replaced, which is covered under trailer axle repair and replacement.
Why suspension problems spread
A suspension fault rarely stays put. A broken spring lets the axle shift out of square, and the tires start scrubbing sideways. A seized equalizer makes one axle carry more than its share, overloading that axle’s springs, tires and bearings. A failing hanger can let the axle creep back until a tire touches the frame. That is why Brad checks the bearings during suspension work, and wheel bearing service and repacking gets done on the same visit when it is due. He also measures the axles for square before the trailer comes down off the stands.
Loading habits that save springs
Most suspension damage comes from weight: too much of it, or in the wrong place. The common rule of thumb is to put about 60 percent of the load ahead of the axles and 40 percent behind. A tail-heavy load lightens the tongue, invites sway, and on a tandem piles weight onto the rear springs. Stay under the trailer’s rated capacity, strap loads so they cannot shift, and ease off for the potholes and frost heaves that appear on New Jersey roads every spring.
Suspension work on site
Landscape, farm and equipment trailers that haul heavy every week wear suspension parts fastest, whether they live in Randolph or out in Warren County. The wider brake and suspension repair group covers the parts that work alongside the springs. Brad does all of it in driveways, yards and job sites as mobile trailer service, and names his price before he starts. Many spring and shackle jobs wrap up in one trip; unusual sizes get ordered and fitted on a return visit. Request suspension repair or call.
Common questions
What are signs of bad trailer leaf springs?
Look for a trailer that leans or rides low at one corner, springs that look flat instead of arched, cracked or broken leaves, and leaves that have shifted sideways out of line. Clunking over bumps, a tire rubbing the fender under load, and tires wearing unevenly on one axle also point to worn springs or the shackles and bushings that hold them. Springs are replaced in pairs so both sides match.
How often should trailer suspension be inspected?
Look it over at least once a year. The bearing service is a good time, since the trailer is already up on stands with the wheels off. Check it again before a long trip or a heavy hauling season, and any time you hit something hard or notice the trailer leaning. Work trailers that carry heavy loads every day, and trailers driven on salted winter roads, deserve a look more often than that.
What does an equalizer do on a tandem-axle trailer?
An equalizer is the rocker mounted on the center hanger between the two axles. The rear end of the front spring and the front end of the rear spring both connect to it, so when one axle rides over a bump the equalizer pivots and shares the load with the other. When its bushings or bolt wear out, one axle ends up carrying more than its share, which shows up as clunking and uneven tire wear.
