A trailer bearing repack means pulling each hub, cleaning out the old grease, inspecting the bearings and races, packing them with fresh grease and fitting new seals. Worn bearings, races or hubs get replaced. Keep Them Rolling Trailer Repair brings this service to your driveway, yard or marina lot anywhere in Sussex, Morris, Warren or Hunterdon County, NJ. Book with Brad Smith at (973) 651-1045.
What is inside a trailer hub

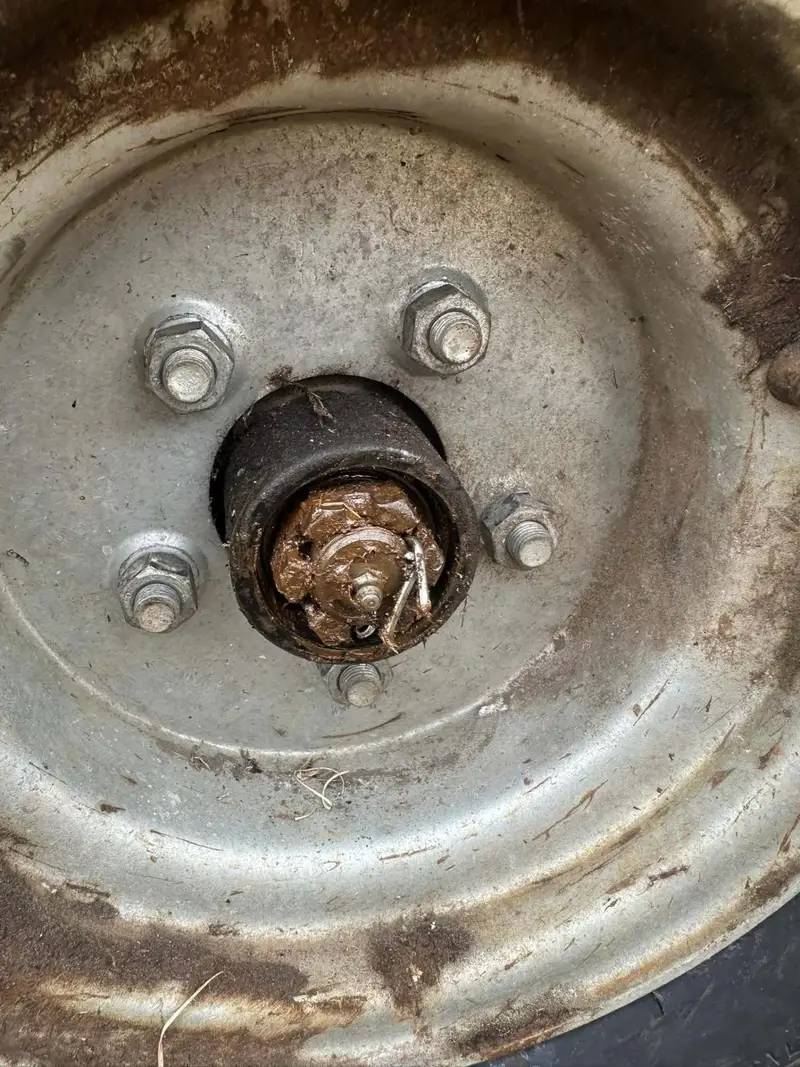

Every wheel end has the same stack of parts. The spindle sticks out from the end of the axle. A larger inner bearing sits toward the axle and a smaller outer bearing sits toward the wheel, and each is a tapered roller bearing running inside a hardened race pressed into the hub. A grease seal at the back keeps grease in and water out. A washer, the spindle nut and a cotter pin or nut retainer hold the hub on, and a dust cap closes the front. On an axle with brakes, the hub doubles as the brake drum.
Grease is what keeps the rollers from grinding into the races. Once it is thinned by heat, washed out, or turned milky with water, metal starts touching metal. Heat builds, and the damage speeds up from there.
Signs of a failing wheel bearing
- A hum or growl from one wheel that rises and falls with road speed.
- A hub noticeably hotter than the others after a drive. An infrared thermometer makes the comparison easy and keeps your hand off hot metal.
- Grease slung around the inside of the wheel or streaked down the tire sidewall, which usually means a failed seal.
- A wheel that rocks when the trailer is jacked up and you push and pull at the top and bottom of the tire.
- A rough, gritty feel when you spin the wheel by hand.
- Smoke or a burnt smell from one wheel. Pull over and stop towing.
How Brad services trailer bearings

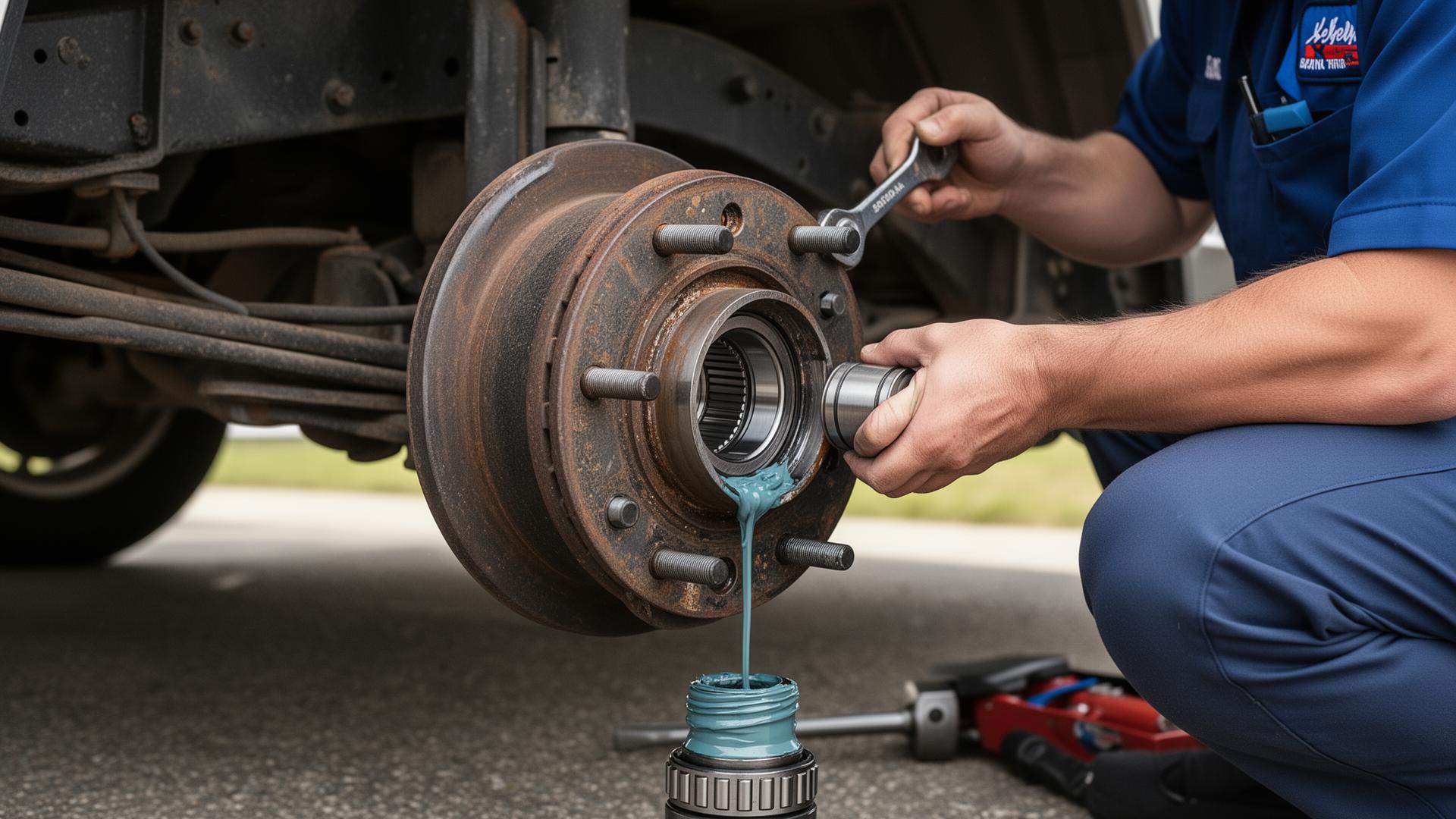

Brad jacks the trailer, sets it on stands and pulls each hub. The seal comes out, the bearings come out, and everything gets washed in solvent so the metal is clean enough to judge. He inspects the rollers and races for pitting, flaking, rust spots and the blue or brown tint left by overheating, then checks the spindle’s bearing seats and seal surface for scoring.
Bearings and races are replaced as matched pairs, never a new bearing running in an old race. Good bearings are packed until fresh grease pushes out between the rollers, and every hub gets a new seal, because a seal is a one-time part. The spindle nut is set so the hub spins freely with no play, then locked with a new cotter pin or retainer, and the dust cap goes back on. If a hub’s race bore is damaged or the casting is cracked, the whole hub is replaced, or the hub-and-drum on a braked axle.
Some axles carry a zerk fitting at the tip of each spindle so fresh grease can be pumped through the bearings with the hub still on. Spring-loaded bearing protectors on boat trailers do a similar job. Both help between services, but neither lets anyone see the races or the seal, and pumping in too much grease can force it past the rear seal onto the brake shoes. Even with those fittings, the hubs should still come off for the yearly inspection so the bearings, races and brakes can be seen.
Boat trailers and water
Boat trailers are the hardest duty a set of bearings can get. After a highway drive the hubs are hot. Back them into a cold lake and the air and grease inside contract, which draws water past the seal. Repeat that every weekend and the grease turns to paste, the races rust, and a bearing that looked fine in spring can be failing by the end of the season. Letting the hubs cool before you launch, and checking the grease more often, both help.
One boat owner who launches about 20 times a year had a hub fail on the drive home from fishing, and Brad’s advice afterward was simple: have the hubs looked at every year. The boat trailer repair page covers the rest of a launch trailer’s routine. Brad services boat trailers at homes and marina lots across Sussex County lake country and the rest of his area.
Skipping a repack costs more than the repack
A bearing that runs dry does not just need replacing. The heat travels into the spindle, and a seized bearing can weld itself on or spin its inner race and cut into the bearing seat. That turns a maintenance visit into trailer axle repair. The hub also carries the brake drum, so bearing service is when Brad looks at the shoes and magnets, and worn parts can often be handled through trailer brake repair and replacement on the same visit.
Trailers that sat through the winter should get their bearings serviced before the first trip in spring, since moisture has had months to settle into the grease. Businesses running several trailers can put repacks on a calendar through fleet maintenance and service programs.
Bearings sit alongside brakes, axles and springs under trailer running gear repair, and every repack happens wherever the trailer is parked; mobile trailer repair and roadside service explains how those visits work. Schedule a bearing service before the season starts.
Common questions
How often should trailer bearings be repacked?
A widely used manufacturer interval is once a year, or sooner if the trailer covers about 12,000 miles before the year is out. Boat trailers that go in the water often, trailers that haul heavy loads, and trailers that sit for months between trips can need it sooner. If you cannot remember the last repack, treat it as due. It is the least expensive protection you can buy against a wheel end failing on the highway.
What are the signs of a bad trailer wheel bearing?
Listen for a hum or growl that climbs with speed, and after a drive compare hub temperatures; one that runs much hotter than the others is a warning. Grease flung on the inside of the wheel, a tire that rocks when you push on its top edge, or a rough feel when you spin it by hand all point to a bearing or seal problem. Smoke from a hub means stop now.
Can a bad bearing damage the axle?
Yes. A bearing that runs dry overheats, and the heat and friction can seize it to the spindle or spin the inner race, grinding the bearing seat out of shape. On most trailer axles the spindle is welded to the axle beam, so a spindle damaged that way often means a new axle, not just a new bearing. In the worst case the spindle breaks and the wheel leaves the trailer.
