Trailer brake controller diagnostics finds out whether a brake problem starts in the controller in your tow vehicle, the wiring and 7-way plug, or the brakes themselves. It applies to every electric-brake trailer. Keep Them Rolling Trailer Repair tests and repairs the whole circuit at your home or business in Morris, Sussex, Hunterdon or Warren County. Brad Smith picks up at (973) 651-1045.
What the controller does
Electric trailer brakes do nothing on their own. The brake controller lives in the tow vehicle, either as a unit mounted under the dash or built in at the factory. When you press the pedal, it sends a variable voltage down a dedicated brake wire, through the 7-way plug, to the magnet inside each brake drum. More voltage means more magnet pull and more braking.
Controllers come in two main types. A proportional controller uses an internal sensor to match brake output to how hard the truck is slowing. A time-delayed controller ramps up to a preset output over a set time, no matter how hard you are braking. Both have a gain adjustment that sets maximum output, and a manual lever or button that applies the trailer brakes by themselves.
Controller problem or brake problem?

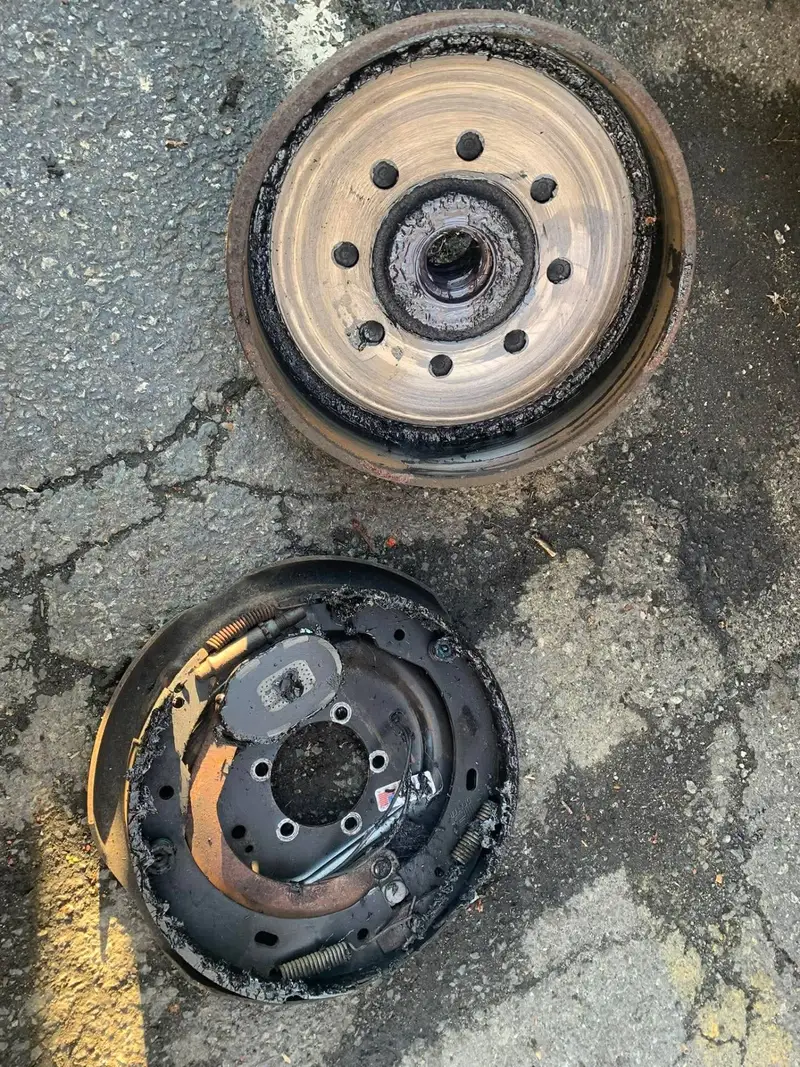

The pattern tells you a lot. A controller or wiring fault usually hits every wheel at once: the display shows no connection or an overload warning, the manual lever does nothing, or braking cuts in and out as you hit bumps. A brake problem usually shows up at one wheel or one side. One wheel locks, one drum stays cold after a drive, or the trailer pulls. Sorting this out first saves money, because a new controller will not fix a worn magnet, and new brakes will not fix a corroded ground.

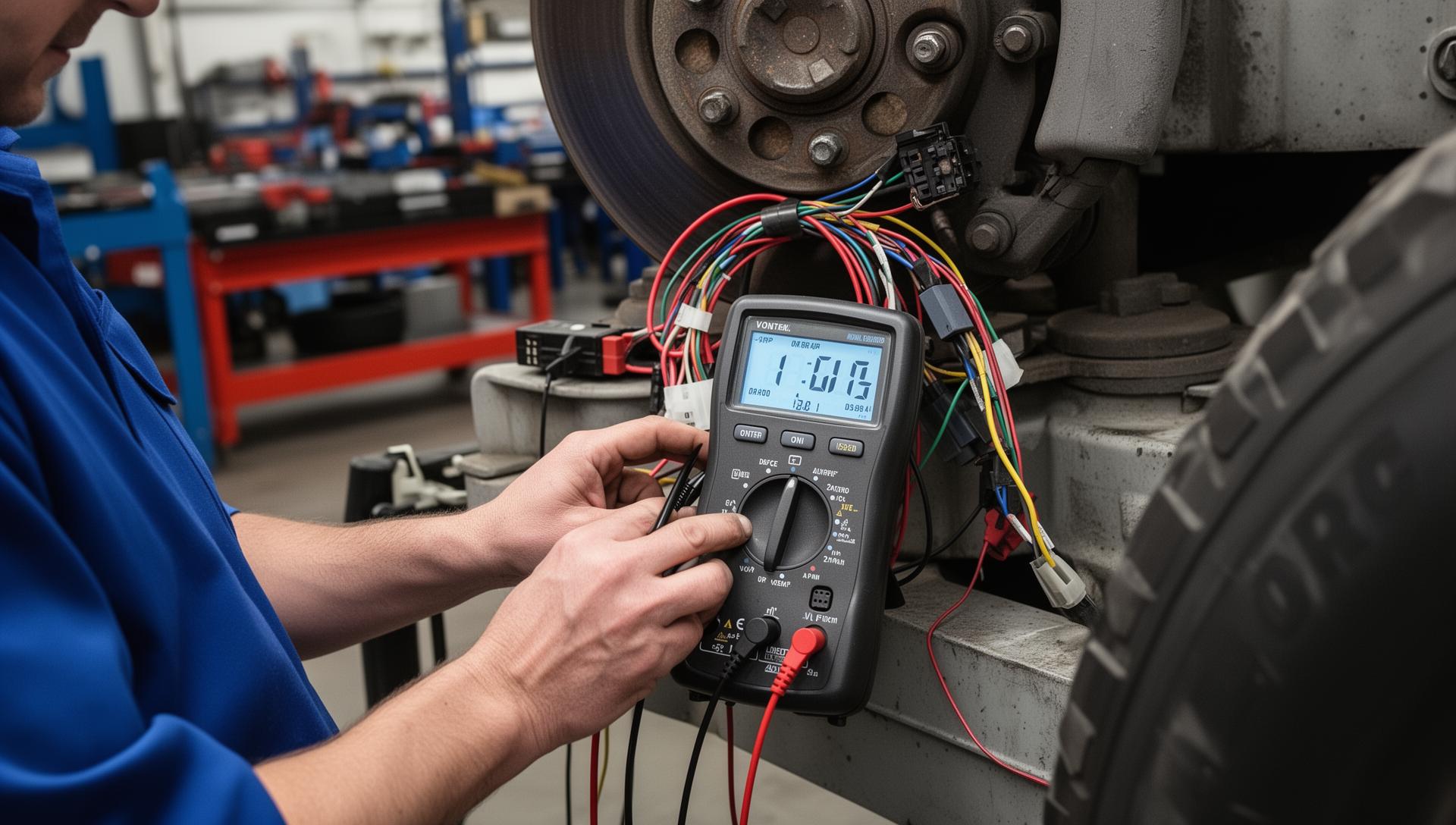

How Brad traces the brake circuit
Half the circuit lives in the truck, so have the tow vehicle on site when Brad arrives. He works from front to back:
- The controller: its power feed, ground, fuse or circuit breaker, the brake-light signal it reads, and the brake output wire. On factory-integrated controllers, he checks the truck’s settings and its trailer brake circuit.
- The truck’s 7-way socket: output voltage on the brake terminal with the manual lever applied, and the condition of terminals that sit in road spray all winter.
- The trailer plug and cord: corroded or spread pins, and broken strands where the cord flexes at the tongue.
- The trailer harness: the junction box, splices, the brake wire to each wheel and the ground return. A weak ground through a rusty frame is one of the most common causes of weak electric brakes.
- Each magnet: resistance and current draw measured against the spec for that brake size. A shorted magnet can drag down the whole circuit.
- The breakaway system: switch, pin, battery and charge line.
Once the circuit checks out, he sets the gain with the trailer loaded the way you normally tow. If the fault is at the wheel, the repair moves to trailer brake repair and replacement. If it is in the harness, trailer wiring repair covers rewiring, junction boxes and plugs, and lighting faults on the same plug fall under electrical and lighting services.
The breakaway switch and battery
Trailers with electric brakes carry a breakaway system: a switch on the tongue, a pin on a cable that clips to the tow vehicle, and a small battery on the trailer. If the trailer ever separates from the truck, the cable pulls the pin and the battery powers the brakes directly. That only works if the battery holds a charge, and many are kept topped up through the 7-way’s 12-volt line only when that circuit is wired and working.
To test it with the trailer hitched, pull the pin and ease forward at a crawl; the brakes should hold the trailer back hard. Push the pin back in right away, since leaving it out drains the battery and heats the magnets. A pin that has worked partway out can leave the brakes dragging. Clip the cable to the tow vehicle itself, not to a safety chain, so it pulls when it should.
Salt, hills and the brake circuit
Salt spray packs the truck’s 7-way socket with corrosion, and a plug that worked fine in September can read open by February. A light coat of dielectric grease on the terminals and a cover that closes both help. A badly set controller shows itself quickly on long grades, and the hills of Hunterdon County find weak trailer brakes fast.
A brake wire chafed through against a live circuit causes a different kind of trouble: the brakes come on whenever that circuit is powered. Brad finds those by testing the harness section by section rather than swapping parts.
Because the truck, the plug and the trailer have to be tested together, this job suits a mobile trailer repair visit in your driveway or yard. It is one of the five services on the trailer brake and suspension repair page. Book a brake controller check or call.
Common questions
How do I know if my brake controller is bad?
A failing controller usually shows it across the whole trailer, not at one wheel. Watch for a blank display or a warning message when you plug in, no response from the manual lever, or braking that cuts in and out over bumps. Check the fuse or breaker and the plug first. Measuring voltage at the 7-way while the lever is applied separates a dead controller from a wiring or magnet fault.
What should my brake controller gain be set to?
There is no universal number; the right gain depends on the trailer’s weight, its brakes and your controller. Set it by feel on a dry, level road with no traffic, loaded the way you will tow. At around 20 to 25 mph, apply the manual lever fully. The trailer brakes should come on firmly, just short of locking a wheel. If they lock, turn the gain down; if they feel weak, turn it up and repeat.
Why do my trailer brakes lock up?
The most common reason is gain set too high for the load, especially on an empty trailer. Other causes include a breakaway pin partly pulled, a brake wire chafed against a live circuit, a proportional controller mounted at the wrong angle, or, at a single wheel, a broken shoe, a broken spring or a grabbing magnet. If every wheel locks, look at the controller and breakaway first; if one wheel locks, the problem is inside that drum.
