Trailer wiring repair fixes the wires, grounds and plugs that carry power from your tow vehicle to the trailer’s lights and electric brakes. Keep Them Rolling Trailer Repair owner Brad Smith traces shorts and broken runs, replaces corroded harnesses, and repairs 4-pin and 7-way plugs in your driveway or yard, anywhere in the four counties KTR serves: Morris, Sussex, Warren and Hunterdon. Call (973) 651-1045.
Signs your trailer wiring needs work
Wiring rarely dies all at once. It warns you first:
- Lights that work in the driveway and drop out on rough pavement.
- A trailer fuse on the truck that blows as soon as you plug in, or only when you step on the brakes.
- Insulation that is cracked, melted near the plug, or hanging loose under the frame.
- Pins with white or green crust, or a plug body that is cracked or half pulled off its cord.
- Wires chewed through on a trailer that sat all winter. Mice and squirrels go after the insulation.
- Electric brakes that work some days and not others.
The testing that pins each of these down is laid out on our trailer electrical and lighting repair page. This page covers the repair itself.
How Brad repairs trailer wiring
A lasting wiring repair has three parts: find the whole fault, replace what is damaged, and seal it so water stays out.

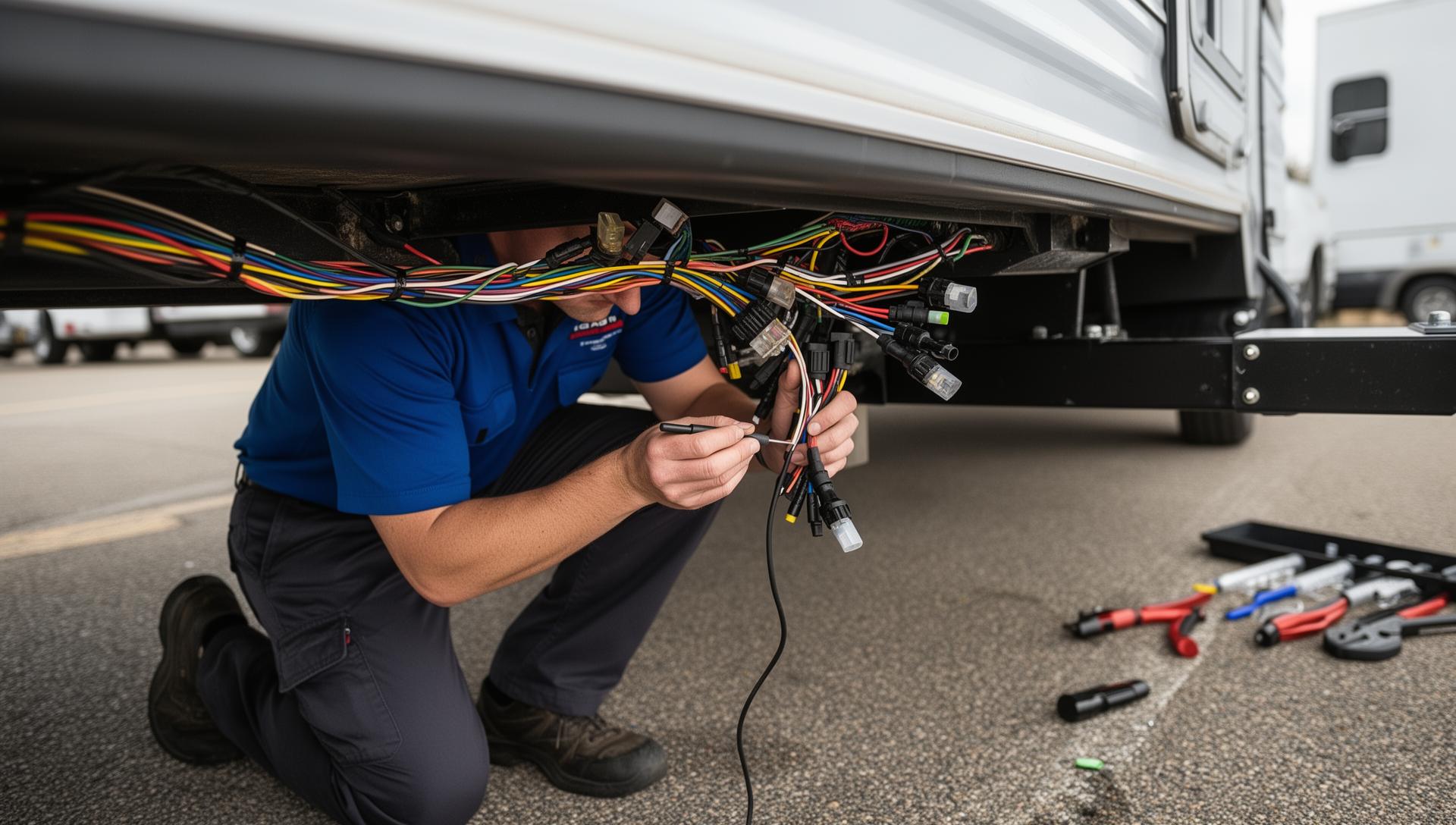

Brad follows each circuit from the plug to the last lamp and marks every bad spot, not just the first one. Trailers that have been patched for years often carry two or three faults stacked on top of each other, and fixing one leaves the others waiting for your next trip.
Corroded wire gets cut back to bright copper, then joined with crimped connectors sealed under heat shrink. Tape and twist connectors let moisture wick in, which is why they fail. New runs go into loom or get clipped along the inside of the frame rail, away from sharp edges, and any hole the wire passes through gets a grommet. Before he packs up, every circuit is tested with the trailer plugged into your truck, so you see it work.
Brad carries common wiring parts on the truck, so most wiring jobs are finished on the first visit. That is how our mobile trailer repair and roadside service is set up to run.
Trailer harness replacement
Patching makes sense when the damage sits in one spot. It stops making sense when the insulation has gone brittle along its whole length, when every few feet carries an old splice, or when the harness runs through a frame that is being welded or rebuilt. At that point a full trailer harness replacement costs less over time than chasing one failure after another.
On an open utility or boat trailer, the new harness runs down each side of the frame to the rear lamps. On enclosed trailers it often runs inside the walls or under the floor, which takes longer to reach. Either way, the goal is a harness with no splices between the plug and the lamps except where they belong.
Ground wires and junction boxes
Most trailer lights ground through the frame, and that is where a lot of trouble starts. Paint, powder coat and rust all insulate. A ground wire bolted to a painted tongue works on day one and fails a year later. Brad grounds to clean bare metal and protects the joint so it stays clean.
Bolted boat trailers, especially galvanized ones, are a special case. Current has to cross every bolted joint to get back to the plug, and each joint is another chance for corrosion. Running a dedicated ground wire to each lamp is often the more reliable fix.
Larger trailers and campers often use a junction box near the tongue, where the plug cord meets the trailer harness. Loose screw terminals and corroded studs inside that box cause the same on-again, off-again faults as a bad plug, so the box gets opened and cleaned during any wiring repair.
Plugs, sockets and adapters
The plug takes more abuse than any other part of the system. It gets dropped on the pavement, dragged when someone forgets to unhook it, and left out in the rain. Brad repairs and replaces the common connectors: 4-pin flat, 5-pin (the extra wire usually runs the reverse lockout on surge brakes), 6-pin round, and the 7-way RV blade.
What fails
Spread or bent contacts that no longer grip, pins eaten by corrosion, a melted pin from a short, and cracked housings that let water sit inside. The truck-side socket fails the same ways, so both halves get inspected and cleaned.
Adapters
A 7-way to 4-pin adapter is handy, but it adds two more connection points to every circuit. A corroded adapter that lives loose in the truck bed is a common hidden fault. If you always tow the same trailer, a direct plug is more reliable.
Upgrading from 4-pin to 7-way
Adding electric brakes means adding circuits: a brake wire, a 12-volt hot lead for the breakaway battery, and usually reverse. The truck needs a working brake controller as well, and Brad can check that side with brake controller diagnostics. Every new connection gets dielectric grease, and the plug gets a cover for storage.
If the lamps themselves are cracked or full of water, see trailer light repair and LED upgrades. If the brake wire tests good and the brakes still won’t stop the trailer, the problem is mechanical and belongs under trailer brake repair.
Brad handles wiring across all four counties, including farm and contractor trailers in Warren County. To book, request service with a quick description of what the lights are doing.
Common questions
How do you fix trailer wiring?
Find every fault before fixing any of them. Confirm power is arriving at the tow vehicle’s socket, then follow each circuit on the trailer from the plug to the lamps, checking voltage and ground at each point. Cut corroded wire back to bright copper, join it with crimped connectors sealed under heat shrink, secure the run away from sharp edges, and ground to clean bare metal. When the insulation is brittle along its whole length, replace the harness instead of patching it.
What does each pin on a 7-way trailer plug do?
On the standard RV-blade 7-way, the six outer terminals carry ground, the electric brake signal from the brake controller, tail and running lights, a 12-volt hot lead that charges a breakaway or camper battery, left turn and stop, and right turn and stop. The center terminal usually carries reverse lights, which on a boat trailer with surge brakes can power the backup lockout. Wire colors vary by manufacturer, so test each terminal instead of trusting the color.
Why does my trailer blow fuses?
A blown fuse means a powered wire is touching ground somewhere it shouldn’t. If it blows the moment you plug in, look for a wire rubbed through against the frame, a crushed plug, or water inside a lamp. If it only blows when you brake or signal, the short is on that circuit. A bigger fuse just moves the failure into the wiring, which can melt. Tracking it down means disconnecting lamps one at a time and dividing the run until the fuse stops blowing.
