Trailer brake repair means finding out why your trailer’s brakes are weak, grabbing or dead, then replacing what is worn: shoes, magnets, drums, wheel cylinders, calipers or the complete assembly. Keep Them Rolling owner Brad Smith fixes electric, surge and disc brakes on the spot, anywhere across the Morris, Sussex, Warren and Hunterdon County area of New Jersey. Phone (973) 651-1045.
Symptoms of worn or failing trailer brakes
- The trailer pushes the truck when you slow down.
- One wheel locks and skids while the others keep rolling.
- A drum grinds, scrapes or squeals.
- One drum running far hotter than its neighbors after a trip, from a dragging brake or a failing bearing.
- The trailer pulls to one side when the brakes come on.
- On a surge trailer, the brakes bind when you back up an incline, or fluid has wet the inside of a tire.
If every wheel is weak at once, the fault may sit upstream in the truck, so Brad tests controller output at the plug first; brake controller diagnostics covers that side.
Electric drum brakes
Most utility, cargo and camper trailers stop with electric drum brakes. When you brake, the controller sends current to an electromagnet inside each drum. The energized magnet grabs the flat, machined face on the inside of the drum and gets dragged in the direction the wheel is turning. That movement swings an actuating lever, and the lever forces the primary and secondary shoes out against the drum.
Every link in that chain wears:
- Magnets wear against the drum face just as shoes do. A magnet worn unevenly or down to its wear line loses pull, and one with a broken lead or an internal short can weaken the whole circuit.
- Shoes glaze, wear thin, or get soaked with grease from a failed hub seal. Grease-soaked linings cannot be cleaned back to full grip, so they get replaced.
- Drums score, wear past the maximum diameter cast into them, or pit with rust after a trailer sits.
- Adjusters, the star wheel between the shoes, rust solid, and the shoes drift farther from the drum with every mile.
- Springs and backing plates weaken, break or rust through on trailers that see salted roads.

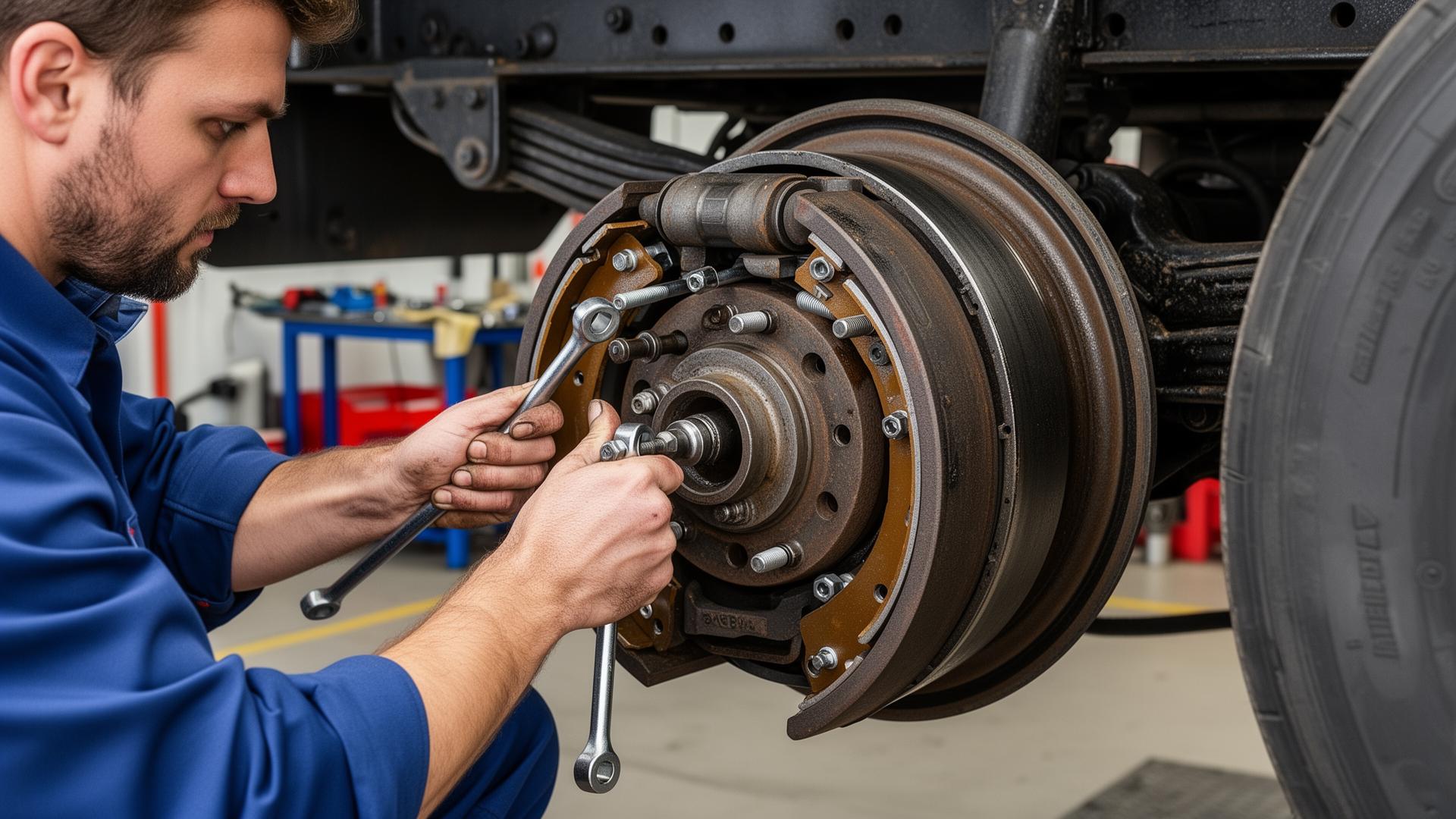

Brad pulls each drum, measures it, and checks the magnet against spec with a meter. On older trailers a complete bolt-on backing-plate assembly is often cleaner than rebuilding piece by piece. Shoes and magnets are replaced together, on both sides of an axle, so the trailer brakes evenly. Magnet leads are spliced and sealed against water, the shoes are adjusted, and the new linings get a series of moderate stops to seat.
Surge brakes on boat trailers
Surge brakes are hydraulic and need no brake wiring from the truck, which is why so many boat trailers use them. The actuator built into the coupler holds a master cylinder. When the truck slows, the trailer’s momentum pushes the actuator together, and that stroke sends fluid to wheel cylinders in drum brakes or to calipers in disc brakes.
Because they get dunked, surge systems fail in predictable ways: water in the brake fluid, steel lines rusted through, seized wheel cylinders or caliper pistons, a leaking master cylinder, or a sticky actuator slide. Backing up also compresses the actuator, so these trailers use a reverse lockout, often an electric solenoid fed by the tow vehicle’s reverse-light circuit. If that circuit is dead, the trailer fights you on the ramp. Brad replaces lines, cylinders, calipers and actuator parts, then flushes and bleeds the system. More on launch trailers is on the boat trailer repair page.
Disc brakes
Trailer disc brakes pair a caliper and pads with a rotor, driven by a surge actuator or an electric-over-hydraulic unit that takes its signal from the brake controller. They shed water better than drums, so heavier boat trailers often use them. Typical failures are seized caliper slides, stuck pistons, pads worn on one side and rust-pitted rotors. On electric-over-hydraulic setups, Brad confirms the unit gets a proper signal before replacing wheel parts.
Trailers with anti-lock brakes
Some commercial trailers carry anti-lock brakes, with speed sensors at the wheel ends and a warning lamp that lights when the system logs a fault. On those trailers Brad checks the lamp and the sensor wiring and connectors as part of the brake job, since hub work disturbs those wires and salt corrodes the plugs. A lit lamp usually means normal braking without the anti-lock function.
The rest of the wheel end
The drum and the bearings share one hub, so a brake job is the natural time for wheel bearing service and repacking. A leaking seal ruins new shoes fast. If a failed bearing has already scored the spindle, trailer axle repair comes next. Brakes sit under Brad’s wider brake and suspension services.
Towing a trailer with failed brakes to a shop is a risk of its own, so Brad comes to it, from home driveways to business yards across Morris County. Read how visits run on the mobile trailer repair page. You get an honest price before any parts go on. Request brake service online or call.
Common questions
How much does it cost to fix brakes on a trailer?
The price depends on the brake type (electric drum, surge or disc), how many axles have brakes, and how far the wear has gone. An adjustment is a small job; new shoes and magnets are more; complete assemblies and new drums are more again. Rust-seized hardware, damaged brake lines and wiring repairs add time. Brad inspects the brakes and gives you a price before he starts.
What can I do if my trailer brakes aren’t working?
First, see whether the controller display detects the trailer. Unplug the 7-way, inspect both halves for corrosion or bent terminals, and check the tow vehicle’s trailer brake fuse. Try the controller’s manual lever at walking speed. On surge brakes, check the fluid reservoir and look for wet spots at the wheels. If nothing turns up, do not tow a loaded trailer until the system is tested.
Is it hard to replace trailer brakes?
Bolting on a new backing-plate assembly is the easy part. The work around it is harder: pulling a hub that may be rusted to the spindle, servicing the bearings and seal while it is off, measuring the drum, sealing the magnet wire splices, adjusting the shoes and testing output afterward. Mistakes show up as brakes that pull, drag or quit on the highway.
Can I pull a trailer without trailer brakes?
It depends on the trailer’s weight, what your tow vehicle’s manufacturer allows, and state rules. Heavier trailers must have working brakes, and the weight where that starts differs from state to state. If your trailer came with brakes and they have quit, do not treat it as a trailer that never needed them. A heavy trailer without its own braking lengthens stops and can push the tow vehicle sideways.
How long do trailer brakes usually last?
There is no fixed mileage. Brake life depends on the weight you haul, your routes, the controller gain, shoe adjustment, and how much water and salt the brakes see. Trailers that sit for months can lose their brakes to rust with plenty of lining left. A yearly look at shoes, magnets and drums, alongside the bearing service, tells you how much life remains.
